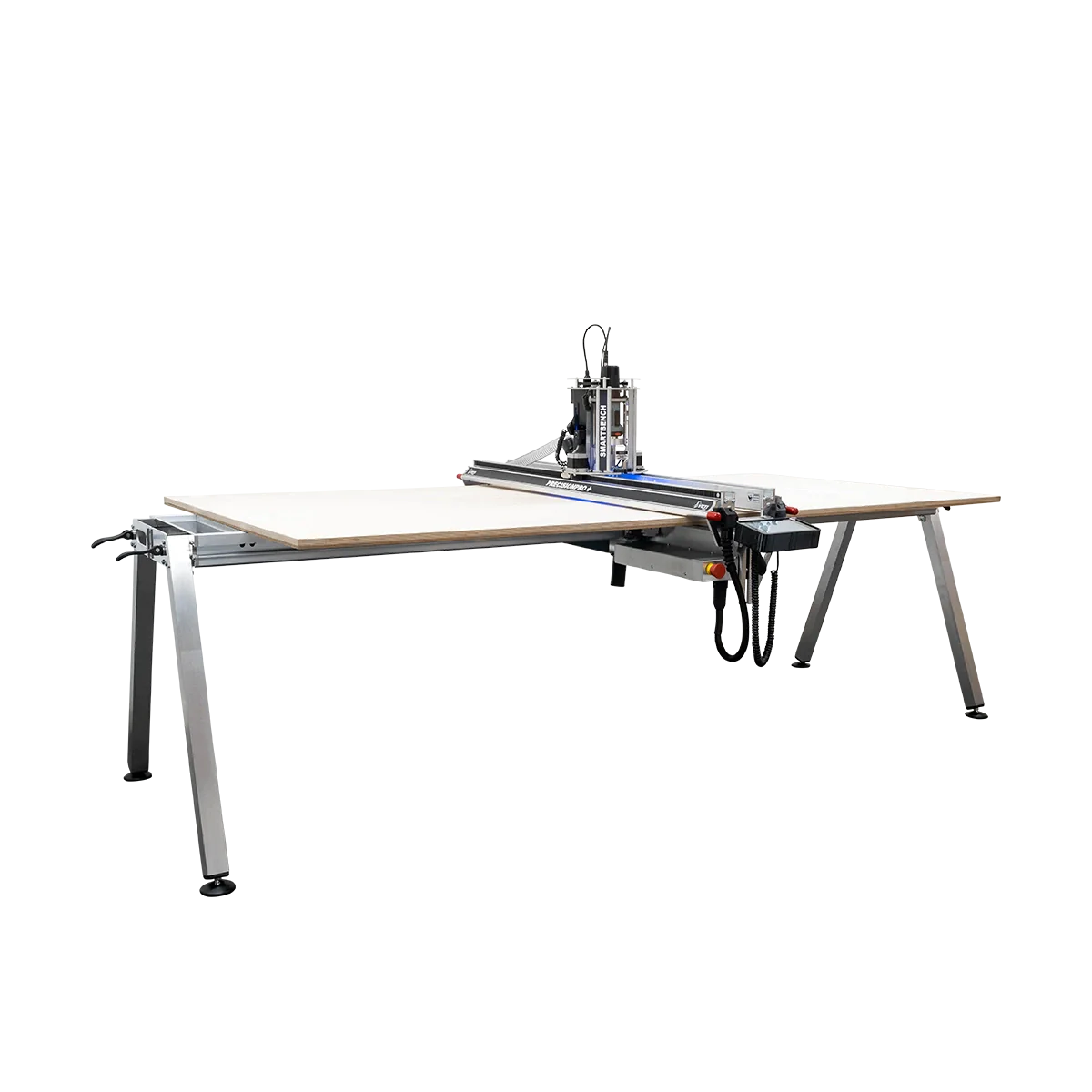

Yeti Tool
SmartBench V1.3 PrecisionPro + CNC Router
SmartBench V1.3 PrecisionPro + CNC Router
SKU: SKU:21329
Order today only 3 left
Couldn't load pickup availability
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.
Yeti Tool SmartBench V1.3 PrecisionPro + CNC Router
SKU: 21329
- Overview
- Features
- Specifications
- What else do I need?
- Packaging & Installation
- Warranty
- Maintenance
- Product Videos
SmartBench PrecisionPro + is a World first. Introducing: YetiPilot, our AI Milling function - Learning CNC has never been easier.
YetiPilot listens and monitors the tool, consequently adjusting your feeds and speeds for you. This means you can save time through job optimization, reduce job failure, and extend tool and brush life.
Designed with customers in mind, it takes 3 minutes to pack down and fits in an SWB so you can take CNC with you. It is accurate to +/- 0.5mm. PrecisionPro + can process 2.5m x 1.25m sheets. It can hold materials as thick as 6 inches and has a Z-axis travel of 5.1 inches.Combined with ShapeCutter our new console-based cutting app, you have an intuitive and powerful tool at your fingertips allowing you to start creating like never before.
For those new to CNC, ShapeCutter has a walk-through job wizard making getting started a simple process.
AI Milling
Yeti Tool are bringing a World first to CNC routing. YetiPilot adaptive feed rate control
- Constantly monitors spindle load and reacts to ever-changing mid-job variations, it’s like having a new employee!
- Optimizes your jobs, resulting in an improved job success
- Changes feed rate dependent on tools wear, meaning tools last longer.
- Reduces your feeds and speeds learning curve if you are new to CNC.
- Reduces wasted material
Easy to use
Take the strain out and reduce the feeds & speeds learning curve with PrecisionPro + and YetiPilot
- Library of standard material feed & speed cutting profiles.
- Advanced profiles screen for experienced users who want to create their own.
- Monthly updates of standard tested profiles as new materials are tested.
Control in your hands with our large 7'' (175mm) touch screen console
- Apps, wizards and walkthroughs make control and processing jobs on SmartBench a breeze.
- Wi-Fi (2.4GHz Network only)/USB connectivity for simple file transfer.
- Easy and quick calibration app ensures your SmartBench is always in tip top condition.
- Remote software upgrades
- Job loading - simple file tiles and folder structures
- Job setting - manual moves and all machine functions
- Job overview - job area displayed for a final check
- Job adjustments - increase or decrease your feeds and speeds "on the fly" to achieve the optimum results.

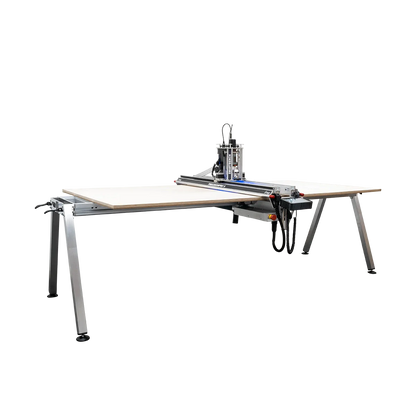

Big capabilities
SmartBench was originally designed with the goal of bringing large format cutting to small spaces
- Maximum sheet size 2500 x 1250mm (98.43'' x 49.2'')
- Z axis travel 150mm (5.9'')
- Full edge to edge capability
- Complete 3 Axis CNC
Multiple Materials
Many different material types with few exceptions
Timber based materials: Hardwood, softwood, partical boards, OSB in fact any timber based product
Composite materials: From solid surface material to Dibond to Foamex to Fibreglass
Hard & soft plastics: Polycarbonate, Acrylic, Acetal, the list is endless.
Non ferrous metals: Soft metals such as aluminum, copper and brass
Quality and safety in mind
One of our main drives when designing SmartBench was to make a tool which repeatedly produces finished parts within it's stated tolerance time and time again.
- Reliable and repeatable performance with our patented design
- Finished part accuracy starts at +/-0.5mm or better
- Tolerances of +/- 0.25mm are achievable with good tool path strategies and sharp tooling
- Listen to your cut and adjust accordingly with our "On the fly" spindle and feed speed control
- Automatic or manual squaring depending on the finish results required
- Simple calibration walk through app

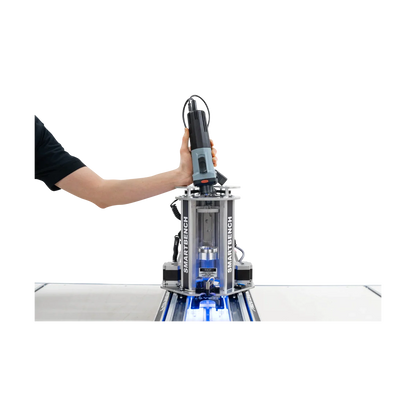

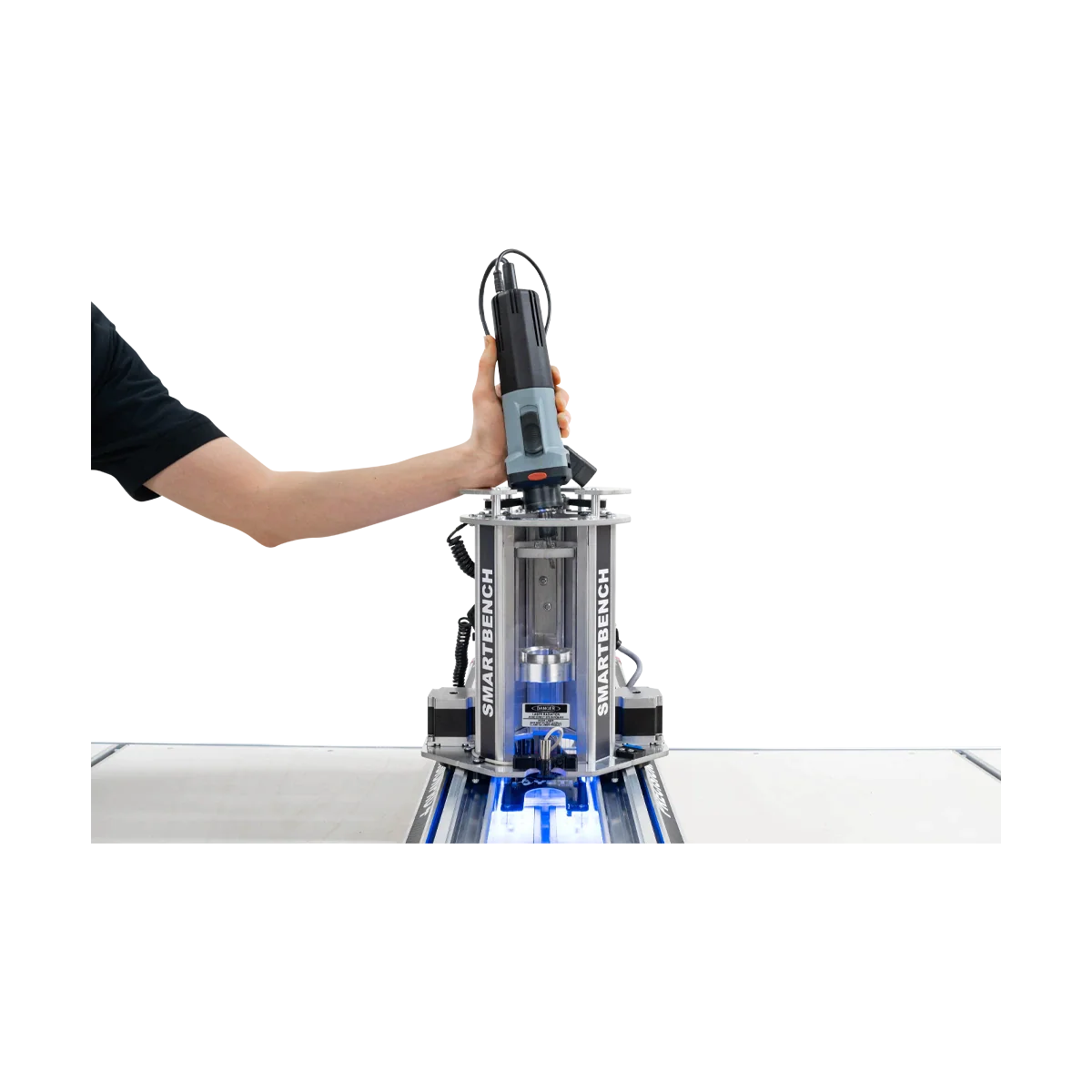

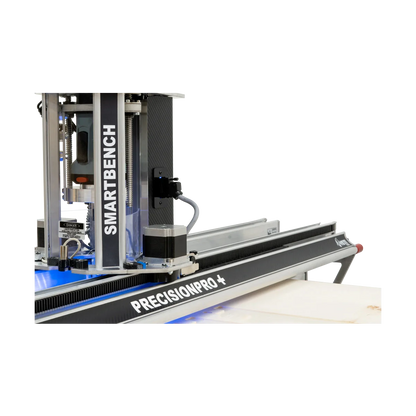

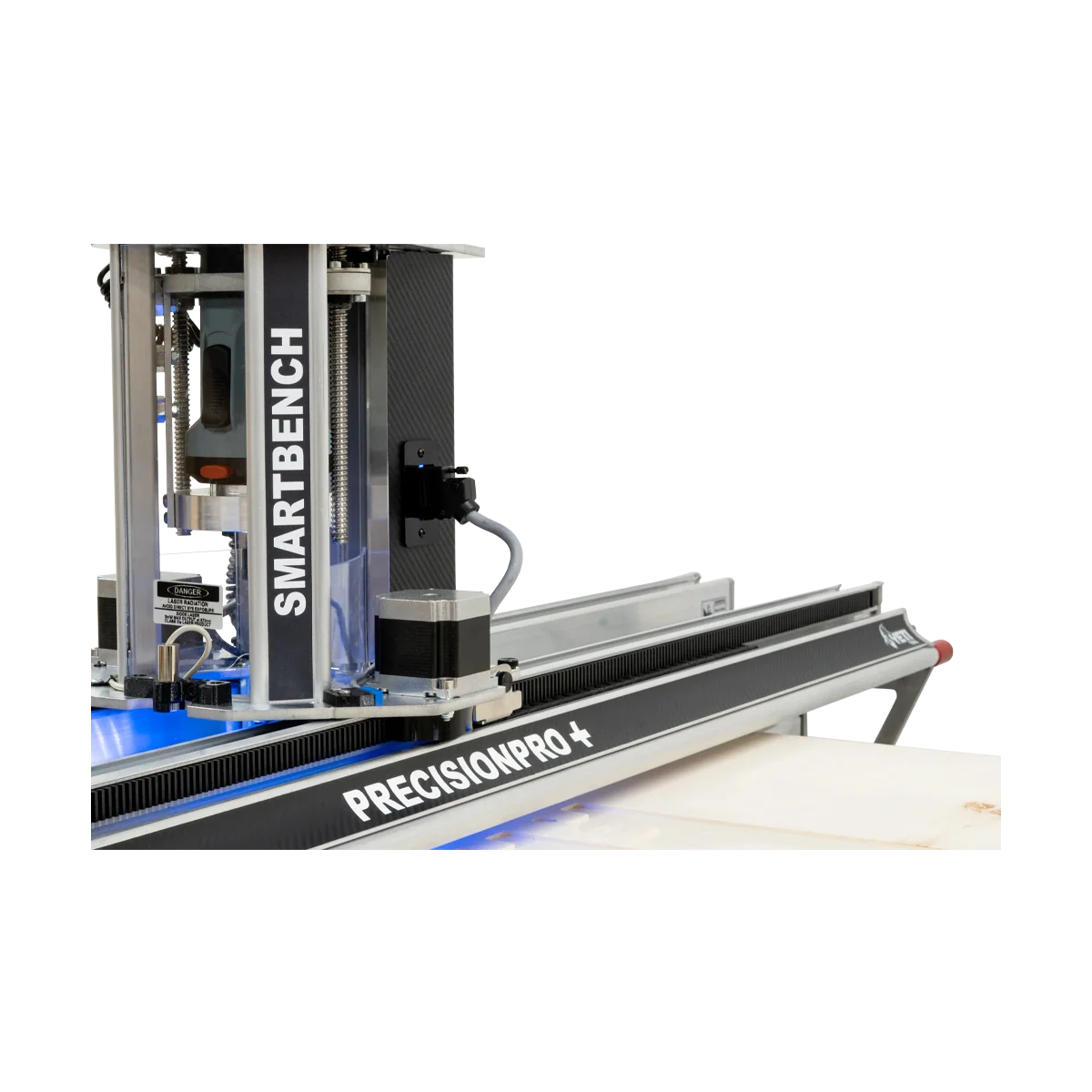

Next generation Yeti spindle and ZHead V3 takes SmartBench to the next level

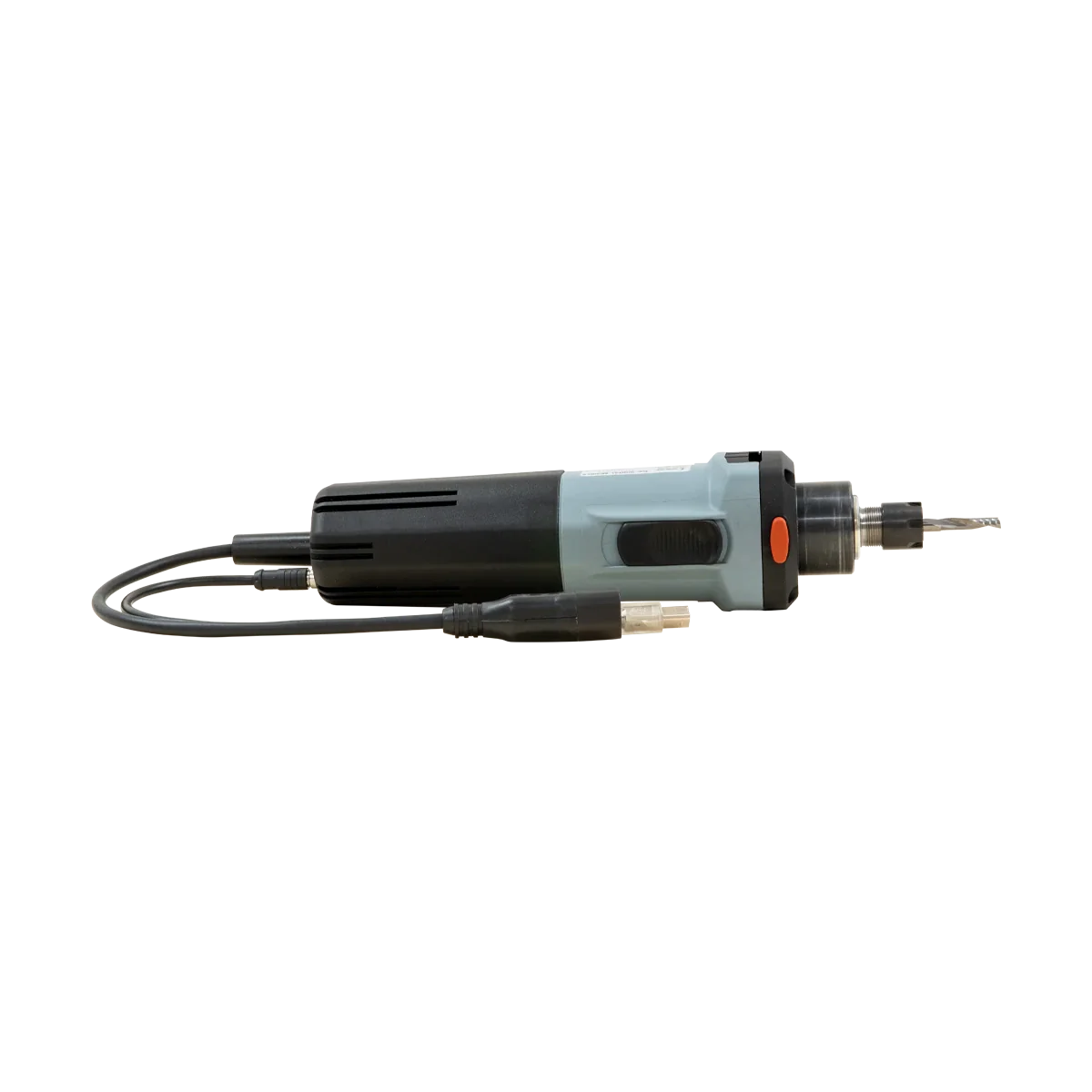

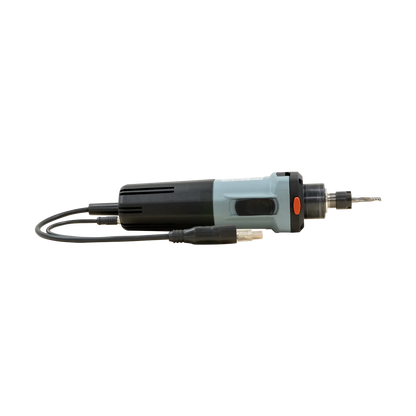

- 1000W Yeti High Performance spindle
- Digital speed control
- 5 key spindle metrics reported every 50 milliseconds
- Brush life stored on the spindle
- Higher resolution job pause on overload function
Safety upper most in our minds.
- CE certified and FCC Compliant
- Remote software upgrades means you get the benefit of our ever increasing library of cutting apps
- E Stop
- Interrupt bars along the x axis
SmartBench PrecisionPro + Model Specific Features
- YetiPilot - World First Automated Adaptive Cutting Feeds
- Console 2 - Quicker processor, more memory, more storage

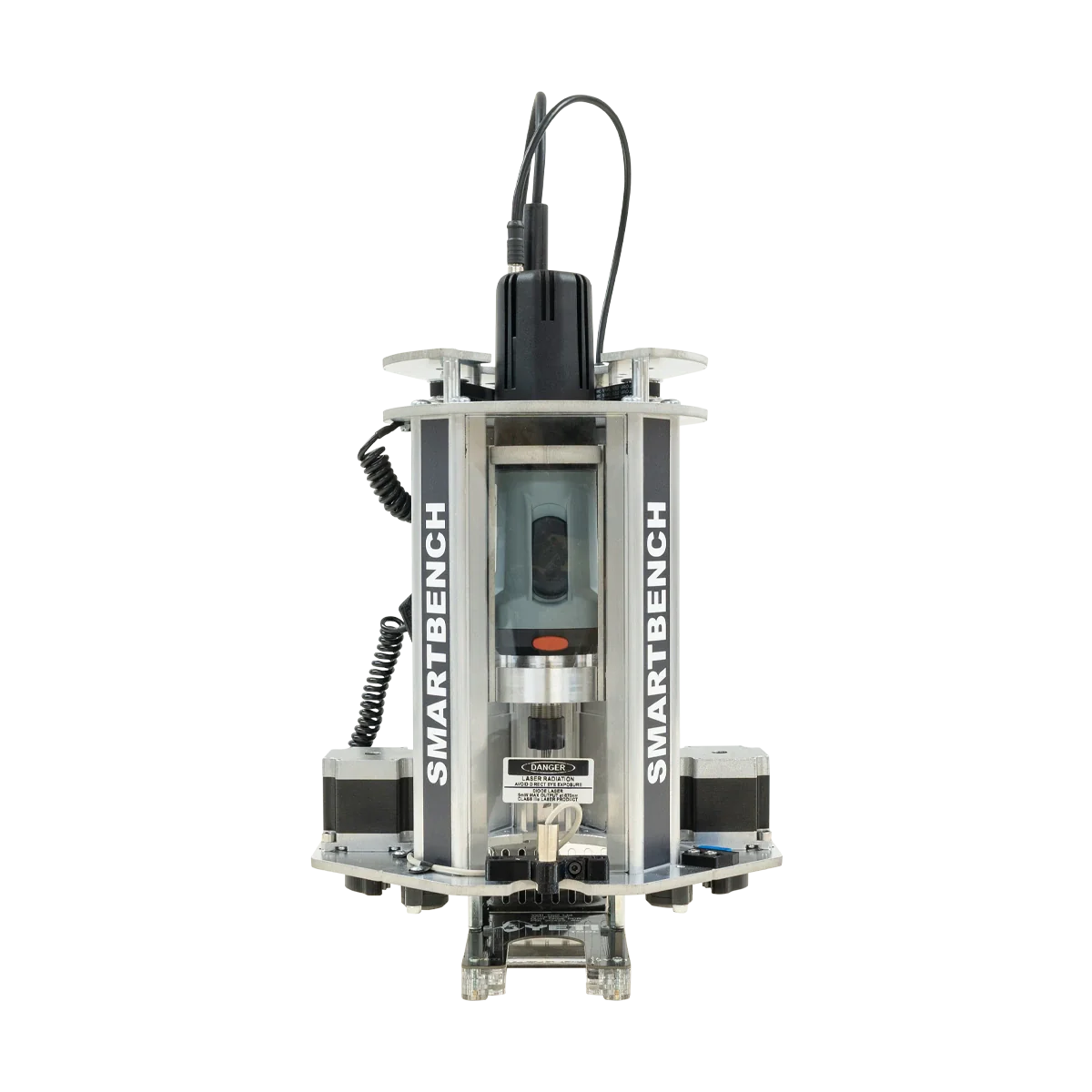

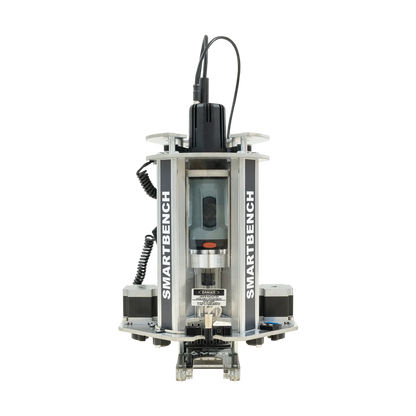

- Z-Head V3
- 120V 1000W SC2 Spindle
- Digital speed control
- Improved spindle/spindle brush life times
- Auto Tool Stop if spindle is in constant overload
- Real-time spindle load display
- Precision ER16 collet - max 10mm shank
- Dual Z-Axis Lead Screws for additional rigidity

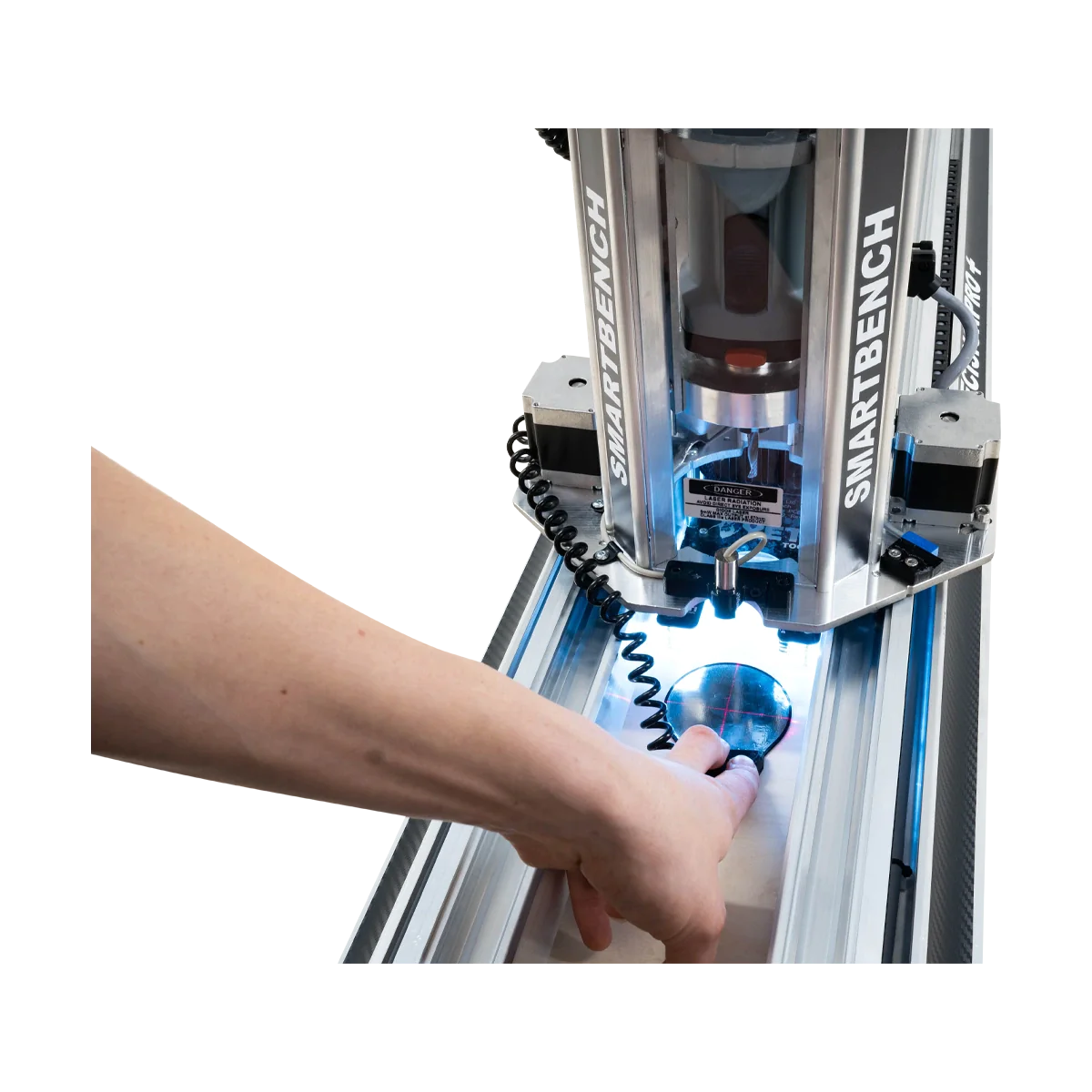

- Laser X/Y Datum set point system
- Can accommodate up to a 13 amp extraction system
- SmartManager Single License
YetiPilot V1.0
- Reduced new material feeds and speeds learning curve
- Auto job strategy optimization
- Ever increasing preset profiles based on material type, cutter diameter and cutter type.
- Custom profile feature where you can create your own adaptive feed profile
- Blunt cutter job fail protection.
- Spindle health check
Console 2
- Increased CPU Speed 1.5 GHz
- Increased RAM 4GB
- Increased Memory 32 GB
- Second USB port
- Improved thermal management
- 10% quicker boot time
- 2.5 times faster file load speed
- Easy SD card replacement
- Increased file segment preview
Shape Cutter
- Easy to use step-by-step set-up wizard walks you through your cut.
- Navigation tabs allow you to navigate through the setup tasks.
- 10 different geometry types to choose from.
- Save your tool/job profile for a quick job turnaround.
- Prompts and hints on process.
- Compatible with both inches and millimeters.
Ease of use
- Intuitive touch screen control.
- Wi-Fi (2.4GHz Network only)/USB connectivity for simple file transfer.

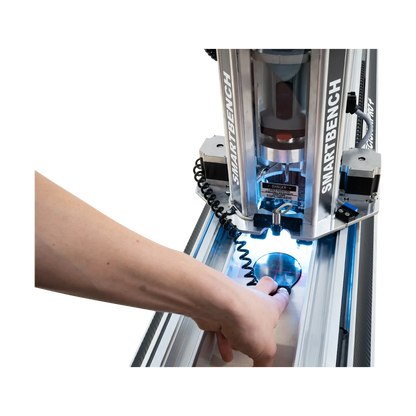

- Z Probe for fast, easy, and accurate setting.
- Extraction system for clean operation.

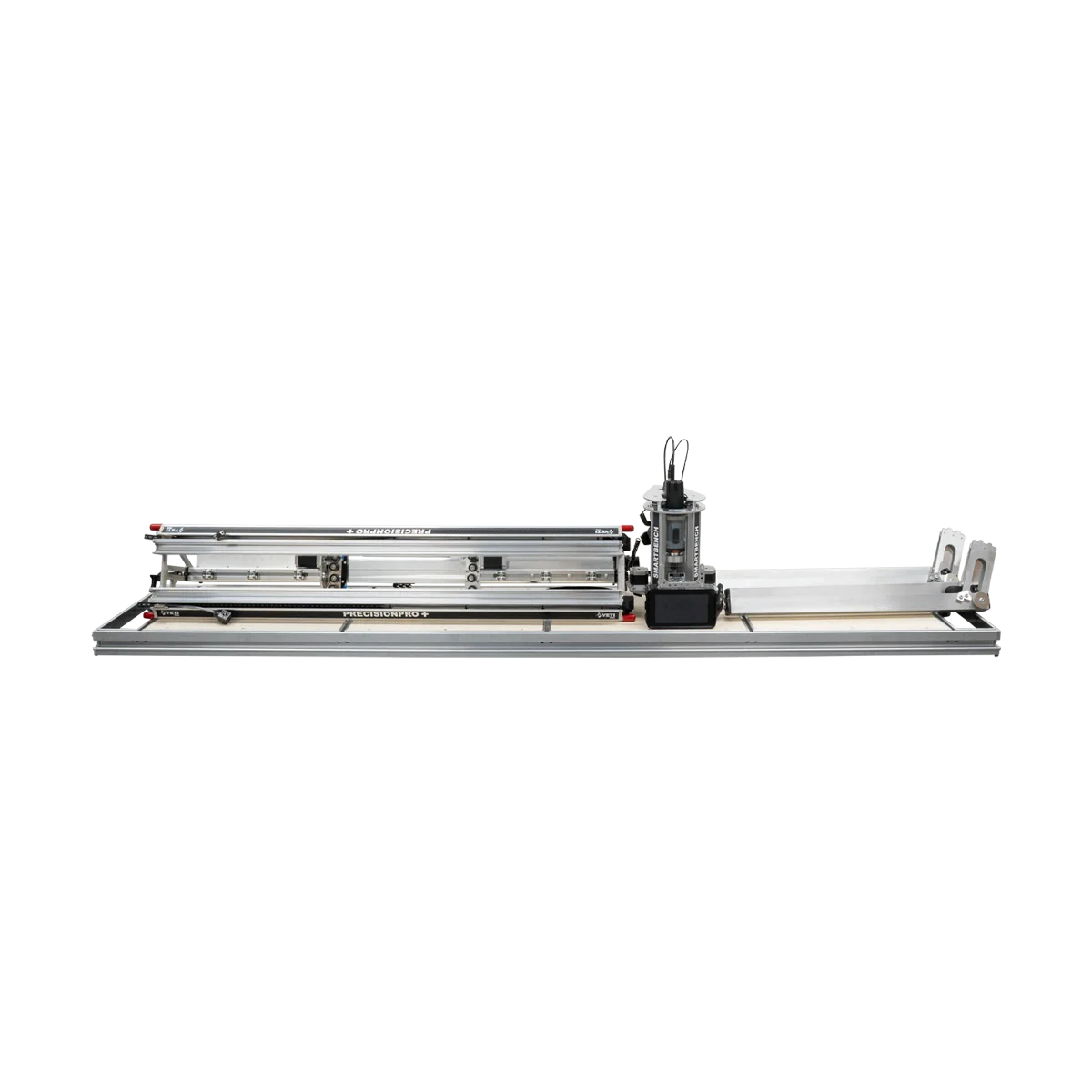

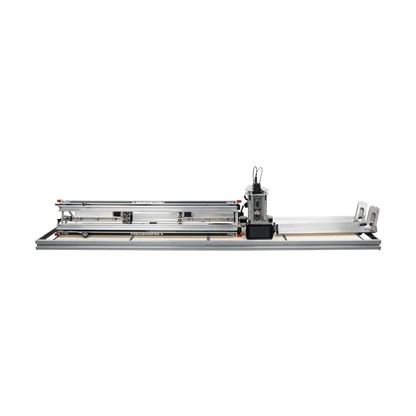

- Pack up and store away in 3 minutes.
- Easy and quick calibration app ensures your SmartBench is always in tip-top condition.
Improve efficiency
- Autonomous cutting – Working with you. SmartBench gets the job done whilst allowing you to get on with other tasks.
- Fast setup – plan your job on the touch screen, set your materials and press go.
- Astonishing job time – SmartBench can perform multiple cutting operations, dramatically improving your job time.
Portable
- SmartBench fits into a SWB van.
- Sections have been made to be handled by one person.
- Nothing more required to start producing standard shapes than SmartBench and a router bit.
- Set up on-site within 3 minutes.
- Height adjustable feet makes light work of setting up on uneven surfaces.
X-axis travel: | 49.8" (1265mm) |
---|---|
X-axis maximum speed: | 236" per minute (6 meters per minute) |
Y-axis travel: | 99.0" (2515mm) |
Y-axis maximum speed: | 236" per minute (6 meters per minute) |
Z-axis travel: | 5.12" (130mm) |
Z-axis maximum speed: | 78" per minute (2 meters per minute) |
Maximum sheet cut size: | 98.43" x 49.2" (2500 x 1250mm) |
Maximum depth of material: | 6.0" (152mm) |
X & Y-Axis: | Rack and pinion |
Z-Axis: | Twin Lead screw |
Spindle speed: | 4,000 – 25,000 rpm |
Speed control: | Digital |
Auto tool stop: | Yes |
Advanced reporting: | Yes |
Power | 1000 Watts. |
Collet size: | ER16 1/4" collet shipped for Canadian purchases |
Voltage: | 120v |
Accuracy: | Accurate to +/-0.5mm (0.019685") or better |
Assembled dimensions: | 107.9" (2740mm) L x 65.0" (1671mm) W x 53.2" (1350mm) H |
Assembled weight: | 225 lbs (100kg) |
CAD/CAM software
In order to get cutting, you’ll need to use your own CAD/CAM software to design and create your projects. We recommend you use Vectric Aspire, Vectric VCarve, or Fusion 360 however any CAM processor that produces GRBL output will work fine!
Router bits
Standard router bits can be used to fit the router head. Canadian systems are shipping with a 1/4" collet.
Remember though that high-quality CNC router bits will yield better results.
See our selection of CNC router bits here.
Dust extraction
You will need to provide a dust extraction unit to attach our standard hose to, and then plug the power supply into the on/off socket provided.
Please see our selection of Festool Dust Extractors here.
Packageing
We appreciate the experience of receiving your router is all part of the buying experience. So we’ve thought about that too.
Our packaging has been designed to be easily handled by one person as it is easily separated into four cartons.
Installation
We've designed our routers as a self install product to negate the need and cost of any professional installation.
Once you receive your router and have unpacked it, installation is easy, just follow our comprehensive instructions and you'll be up and running in approximately 5 minutes.
Please visit Yeti Tools warranty page for warranty information.
Please visit Yeti's maintenance page for details of the 50, 100, and 320-hour checks and maintenance procedures to perform
