Yeti Tool 21543 SmartBench PrecisionPro X V1.3

Yeti Tool

SmartBench PrecisionPro X V1.3

SKU: 21543

order today only 4 left in stock
$15,795.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

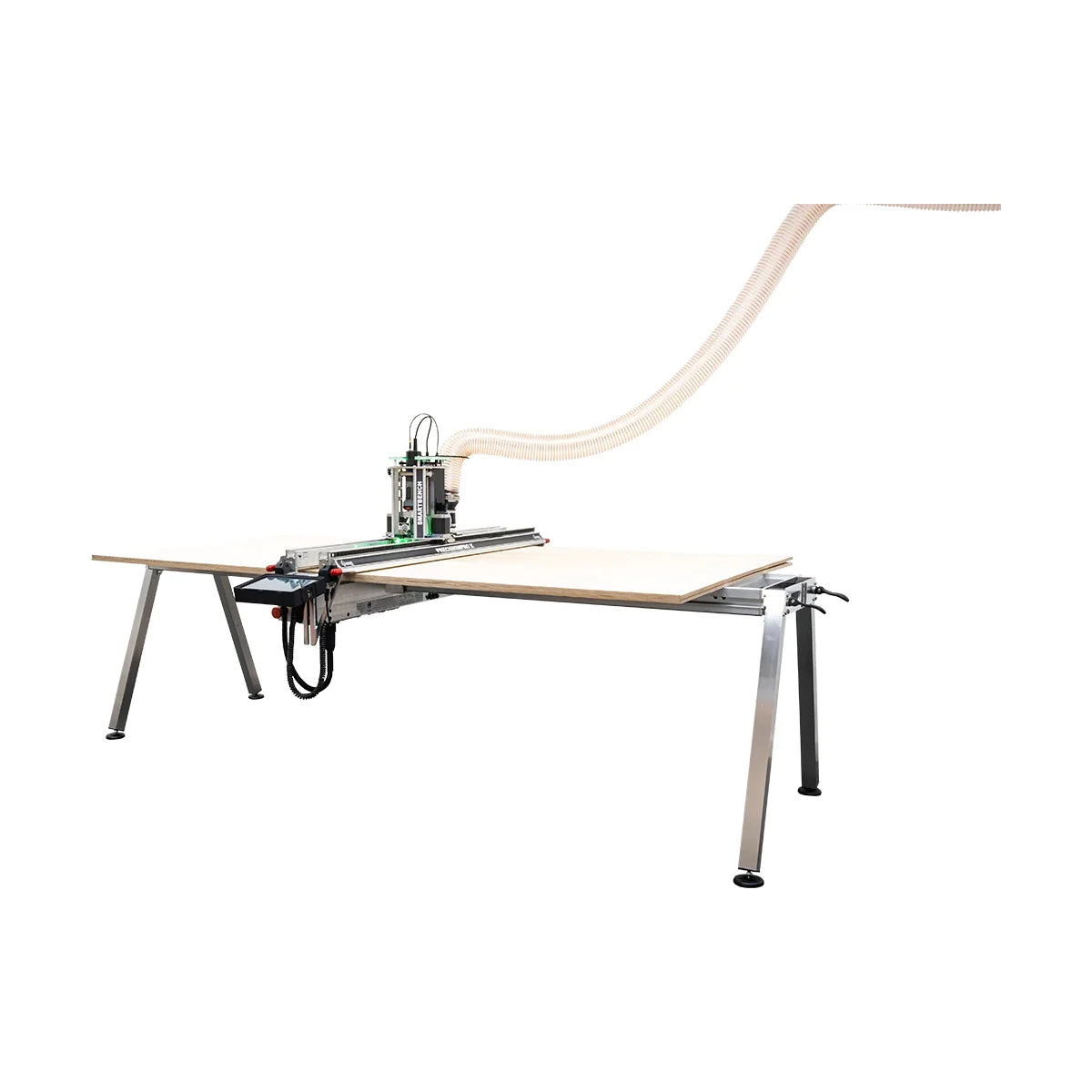

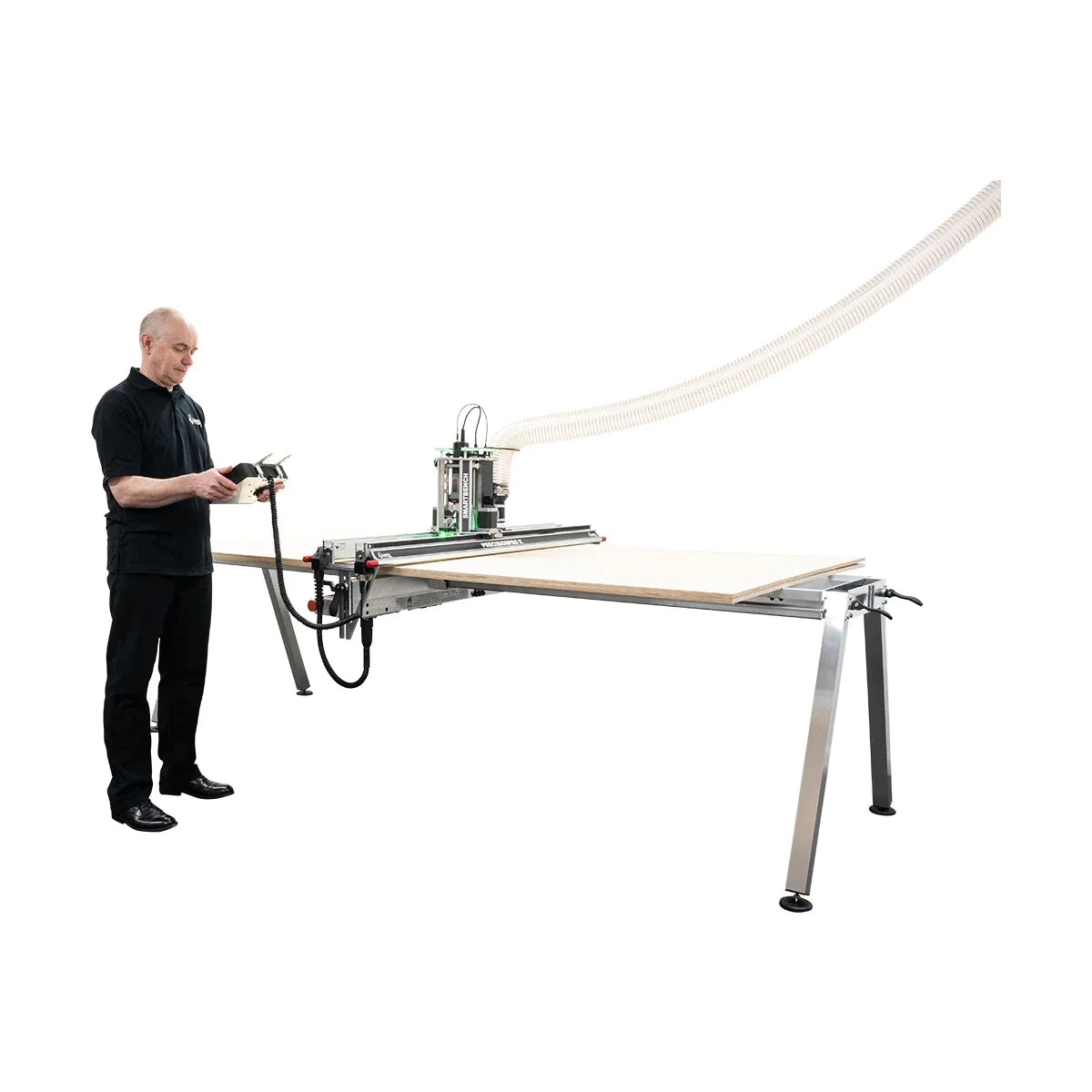

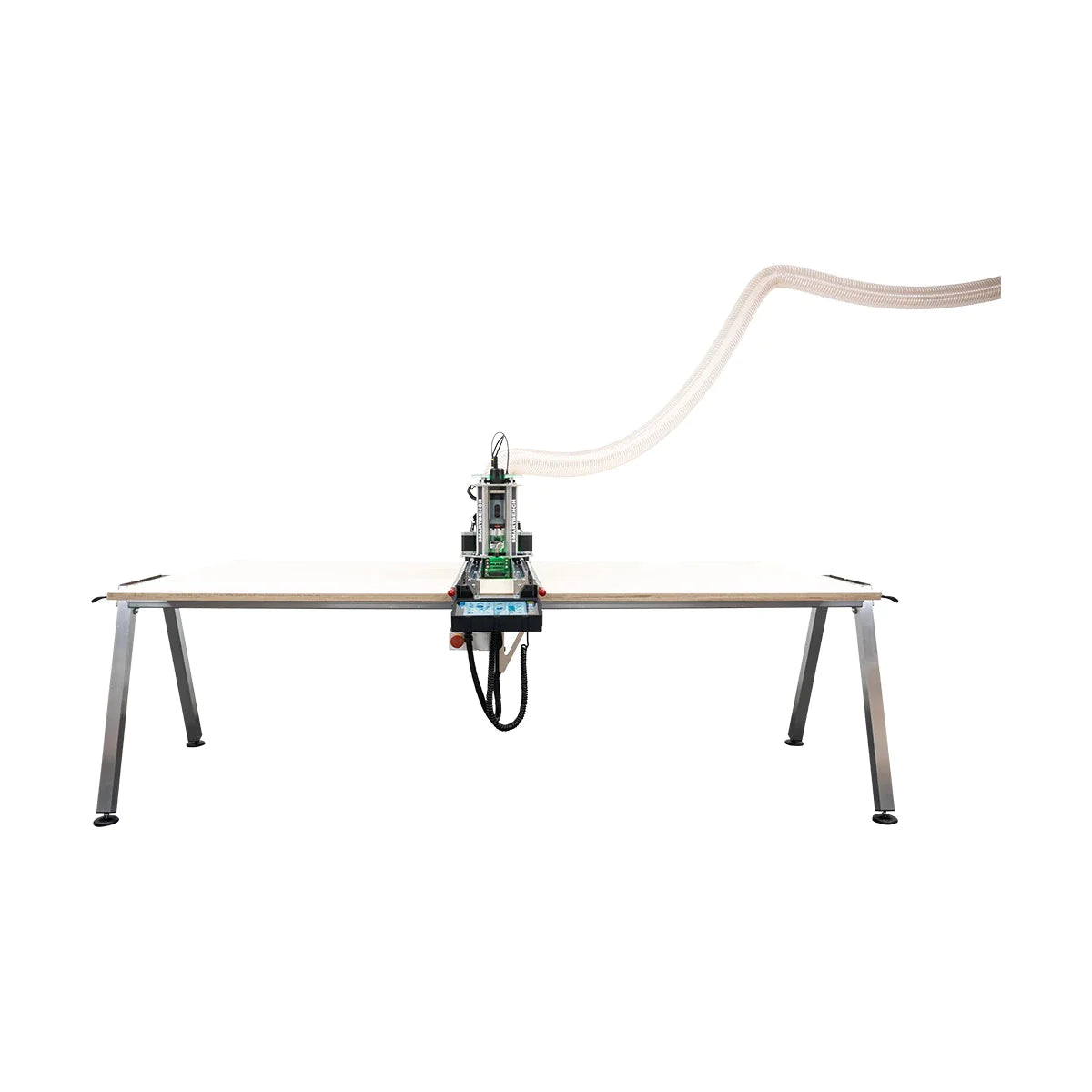

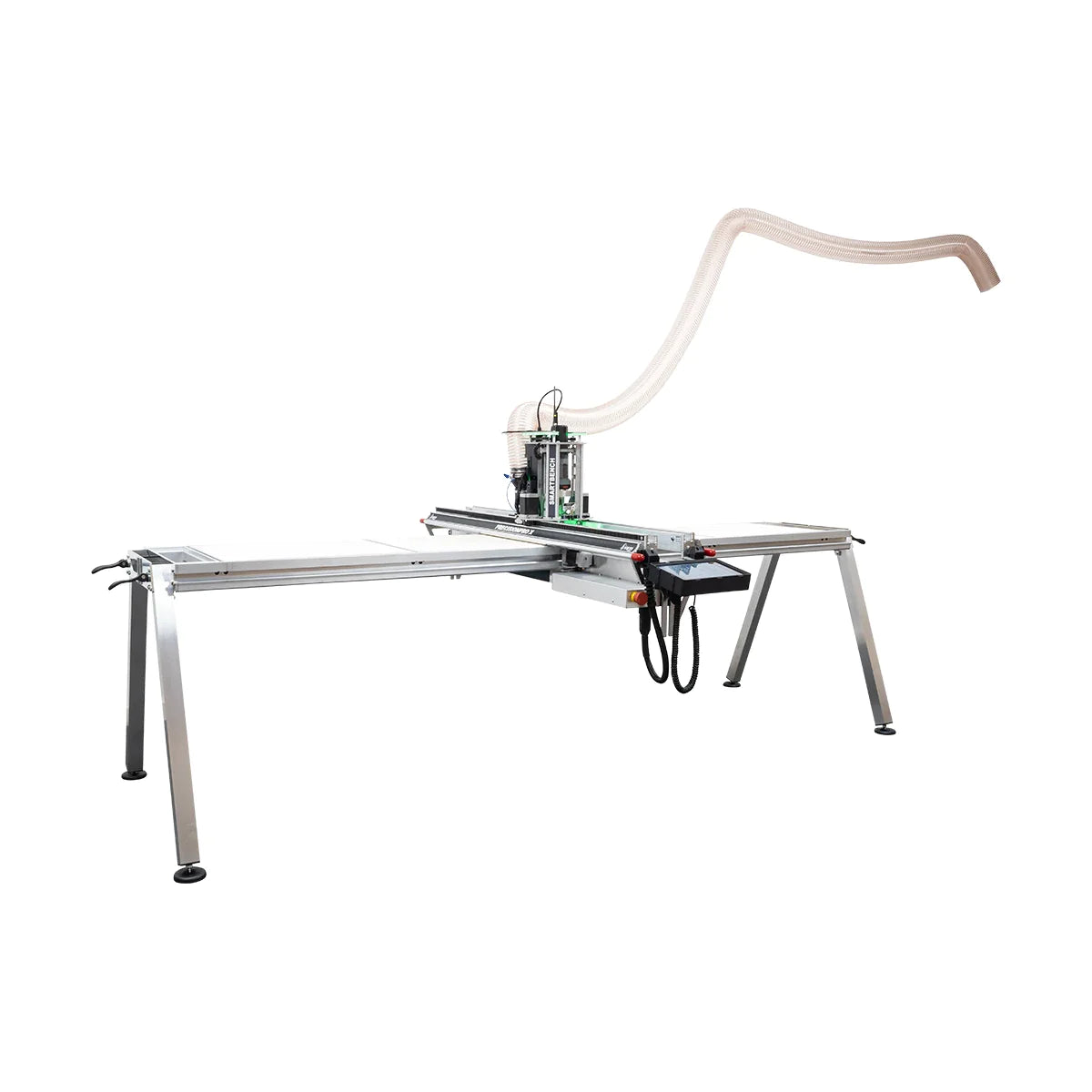

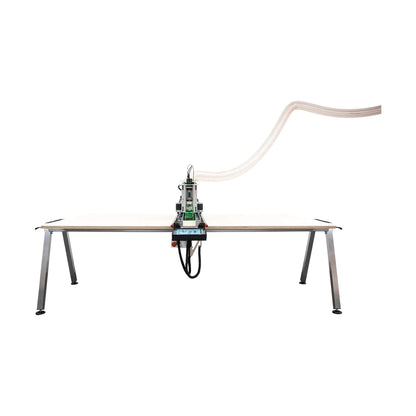

Yeti Tool SmartBench PrecisionPro X V1.3

SKU: 21543

Get ready to supercharge your factory with SmartBench PrecisionPro X – the CNC power tool for manufacturers!

Experience the incredible combination of a large-format, automated feeds and speeds CNC router now with Bigfoot and Console XL. It's SmartBench, but on steroids! Say goodbye to shop vac limitations and hello to an easier to use console. Transform your workshop into a factory with one purchase.

The SmartBench PrecisionPro X has all the fantastic features of a PrecisionPro+ CNC machine customers would expect from Yeti Tool, including large-format as well as automated feeds and speeds. With the addition of "BIGFOOT" and "Console XL" the Yeti SmartBench Really ups it's game.

SmartBench PrecisionPro X Model Specific Features:

  • YetiPilot - World first for CNC routing: automated adaptive cutting feeds
  • Console XL - Larger 10.1" console, easier to use, additional screen protection

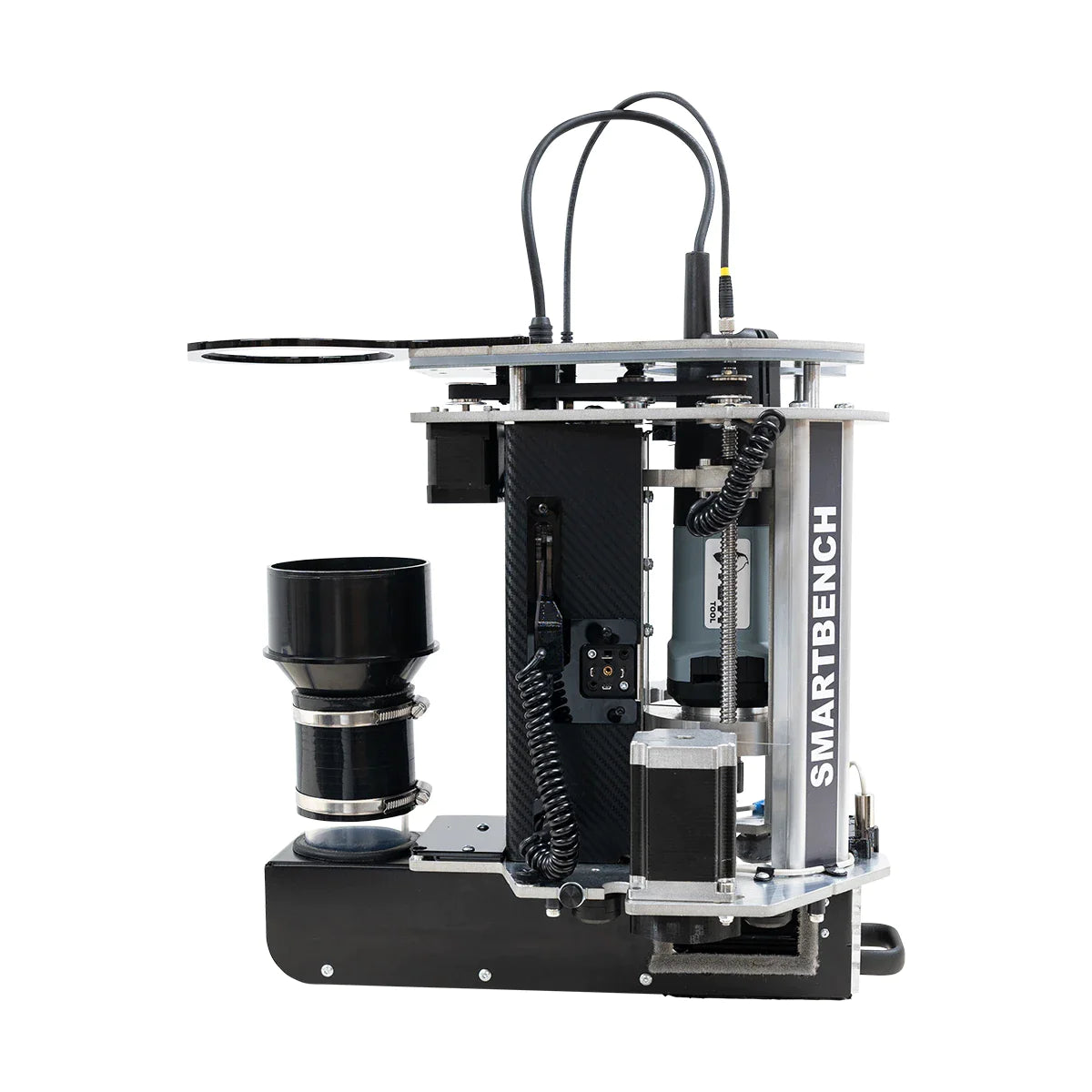

  • ZHead V3
  • 110V 1000W Spindle
  • Digital speed control
  • Improved spindle/spindle brush life times
  • Auto Tool Stop if spindle is in constant overload
  • Real time spindle load display
  • Precision ER16 collet - max 10mm shank
  • Dual Z Axis Lead Screws for additional rigidity
  • Laser X/Y Datum set point system
  • SmartManager Multi License
  • *Can accommodate up to a 10 amp portable extraction system

* When using standard dust shoe

YetiPilot V1.0 Features and Benefits:

  • Reduced learning curve for new users, YetiPilot automatically handles feeds and speeds for a range of common materials
  • Real time optimization of speeds and feeds to reduce cycle time
  • Ever increasing preset profiles based on material type, cutter diameter and cutter type
  • Custom profile feature where you can create your own adaptive feed profile
  • Blunt cutter job fail protection
  • Spindle health check

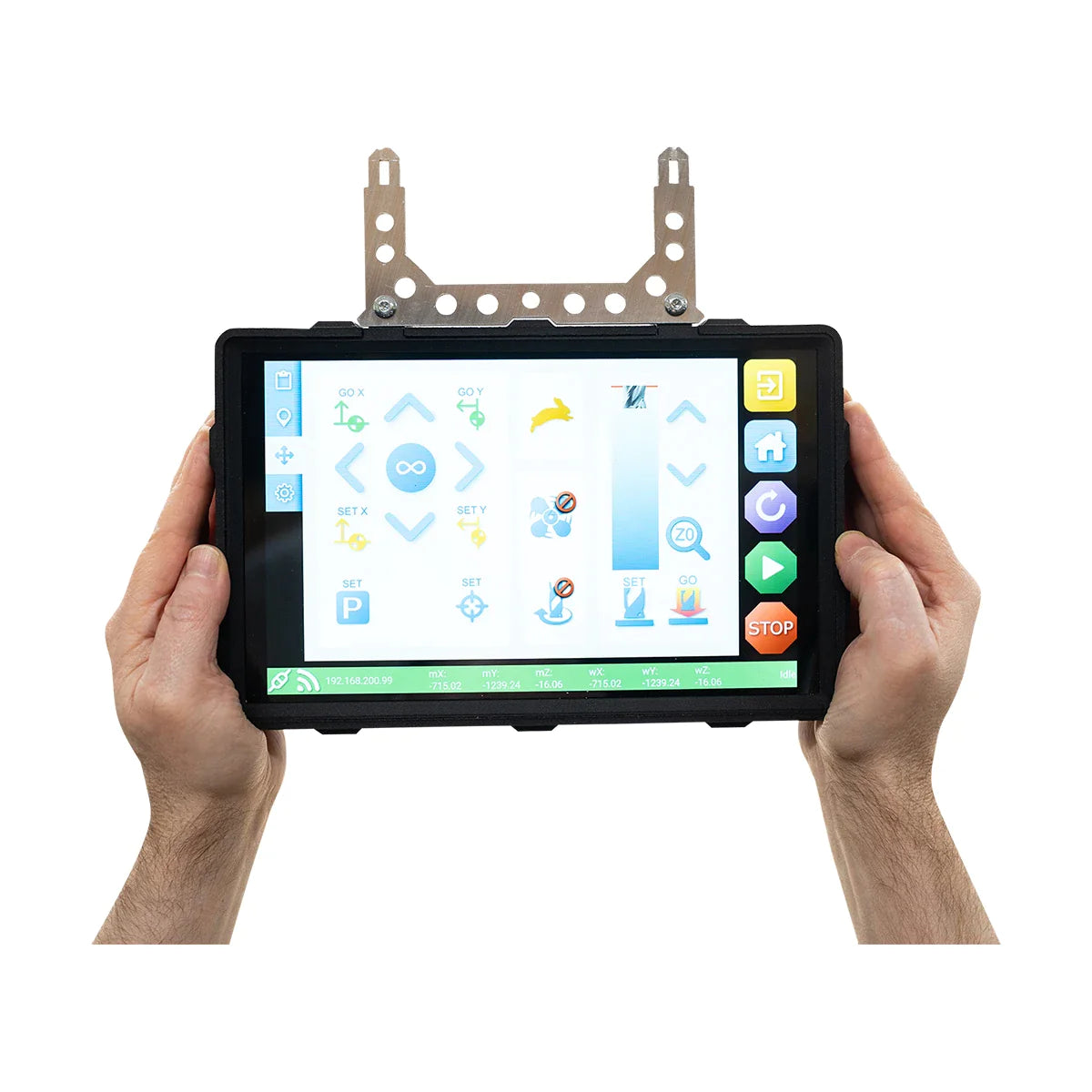

Console XL Features and Benefits:

  • Larger 10.1" interface for easier use
  • 178-degree viewing angle
  • App library ready
  • Additional screen protection
  • Rugged case
  • Dual USB ports
  • Easy SD card change

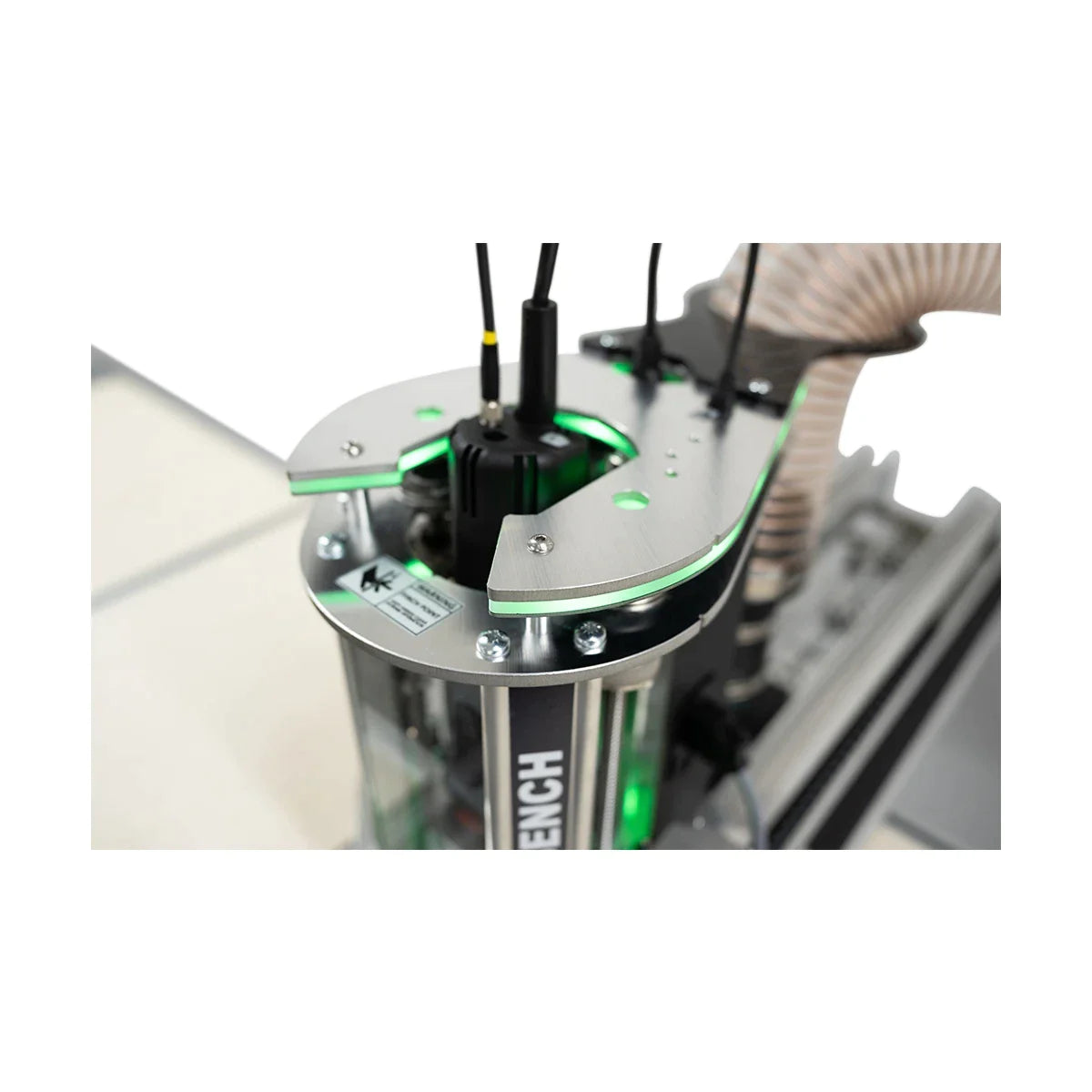

BigFoot Features and Benefits:

  • Production-ready dust shoe that is compatible with 100mm dust extraction systems
  • Larger chip evacuation
  • Improved collection results in a cleaner workspace and less bag changes
  • Halo lights for better status monitoring
  • Capacity for larger tools
  • Built in static handling
  • Compatible with SmartBench V1.1 and above

Dust Extraction/Collection Requirements
To see the requirements for the BigFoot to work effectivelly, please download the BigFoot Data Sheet.

Ease of use:

  • Intuitive touch screen control
  • Wi-Fi (2.4GHz Network only)/USB connectivity for simple file transfer
  • Z Probe for fast, easy and accurate setting
  • Extraction system for clean operation
  • Easy and quick calibration app ensures your SmartBench is always in tip top condition
  • Pack up and store away in 3 minutes*

* After removal of BigFoot dust extraction system

Improve efficiency:

  • Autonomous cutting – working for you. SmartBench gets the job done whilst allowing you to get on with other tasks
  • Fast setup – plan your job on the touch screen, set your materials and press go
  • Astonishing job time – SmartBench can perform multiple cutting operations, dramatically improving your job time

*Portable:

  • SmartBench fits into a SWB Van
  • Sections have been made to be handled by one person

* After removal of BigFoot dust extraction system

Large capabilities:

  • Process up to 2500mm (98.43'') x 1250mm (49.2'') sheets edge to edge
  • Use SmartBench in feed-through mode and process any length of work surface

Multi material capability:

  • Softwood and hardwood timber sections up to 150mm thick
  • Timber based composite boards
  • Composite work surfaces
  • Polycarbonate, Acrylic and other forms of plastic
  • Aluminium

Quality - Accuracy - Safety:

  • Accuracy of +/-0.5mm or better
  • Remote software upgrades means you get the benefit of our ever increasing library of cutting apps
  • CE certified
  • E Stop
  • Interrupt bars along the x axis
X-axis travel: 49.8" (1265mm)
X-axis maximum speed: 236" per minute (6 meters per minute)
Y-axis travel: 99.0" (2515mm)
Y-axis maximum speed: 236" per minute (6 meters per minute)
Z-axis travel: 5.12" (130mm)
Z-axis maximum speed: 78" per minute (2 meters per minute)
Maximum sheet cut size: 98.43" x 49.2" (2500 x 1250mm)
Maximum depth of material: 6.0" (152mm)
X & Y-Axis: Rack and pinion
Z-Axis: Twin Lead screw
Spindle speed: 10,000 – 25,000 rpm
Speed control: Digital
Auto tool stop: Yes
Advanced reporting: Yes
Power 1000 Watt
Collet size: ER16 1/4" collet shipped for Canadian purchases
Voltage/Power: 120v/1,900 watts
Accuracy: Accurate to +/-0.5mm (0.019685") or better
Assembled dimensions: 107.9" (2740mm) L x 65.0" (1671mm) W x 53.2" (1350mm) H
Assembled weight: 236 lbs (105kg)

CAD/CAM software

In order to get cutting, you’ll need to use your own CAD/CAM software to design and create your projects. We recommend you use Vectric Aspire, Vectric VCarve, or Fusion 360 however any CAM processor that produces GRBL output will work fine!

Router bits

Standard router bits can be used to fit the router head. Canadian systems are shipping with a 1/4" collet.

Remember though that high-quality CNC router bits will yield better results.

See our selection of Amana CNC router bits here.

*Dust extraction

You will need to provide a dust extraction unit to attach our standard hose to, and then plug the power supply into the on/off socket provided.

Please see our selection of Festool Dust Extractors here.

*Not required when using BigFoot dust extraction system hooked up to a conventional woodworking dust collector.

Please visit Yeti Tools warranty page for warranty information.

Please visit Yeti's maintenance page for details of the 50, 100, and 320-hour checks and maintenance procedures to perform
