Yeti Tool 21704 Console XL
New Addition

Yeti Tool

Console XL

SKU: 21704

order today only 4 left in stock


Free Shipping

Click Checkmark for Details

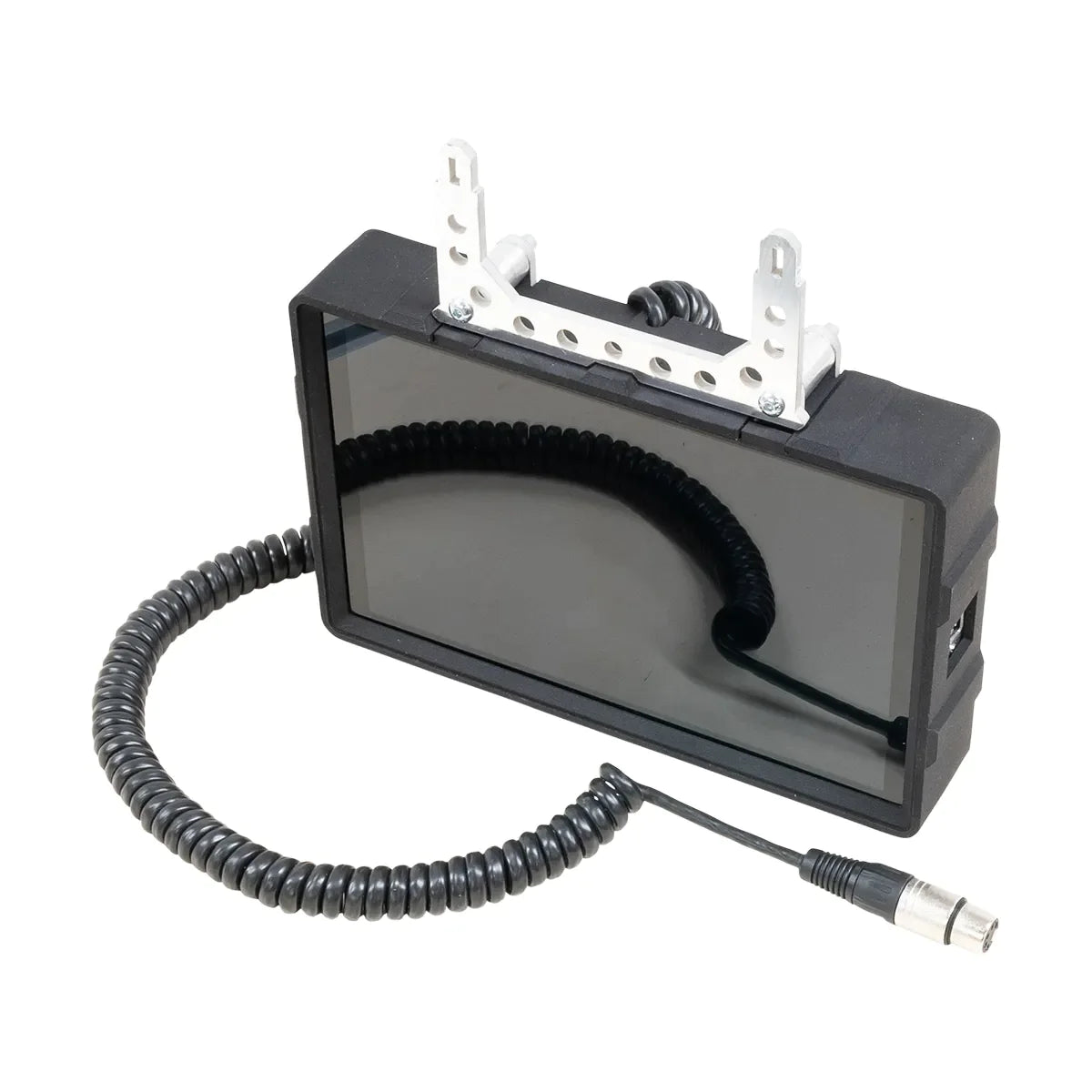

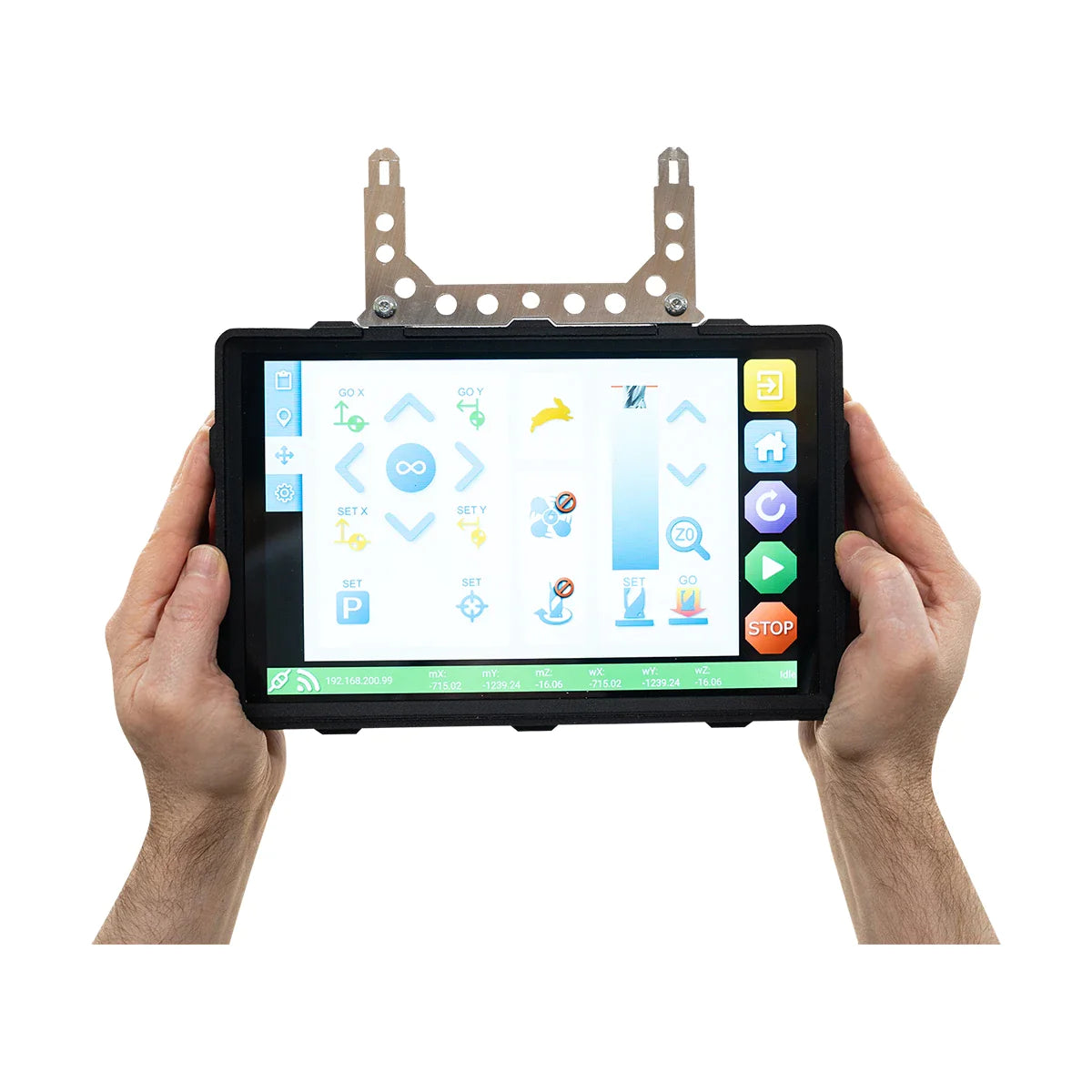

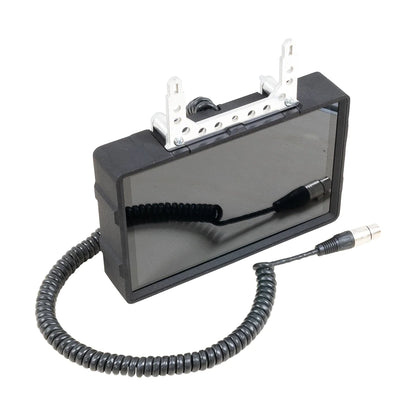

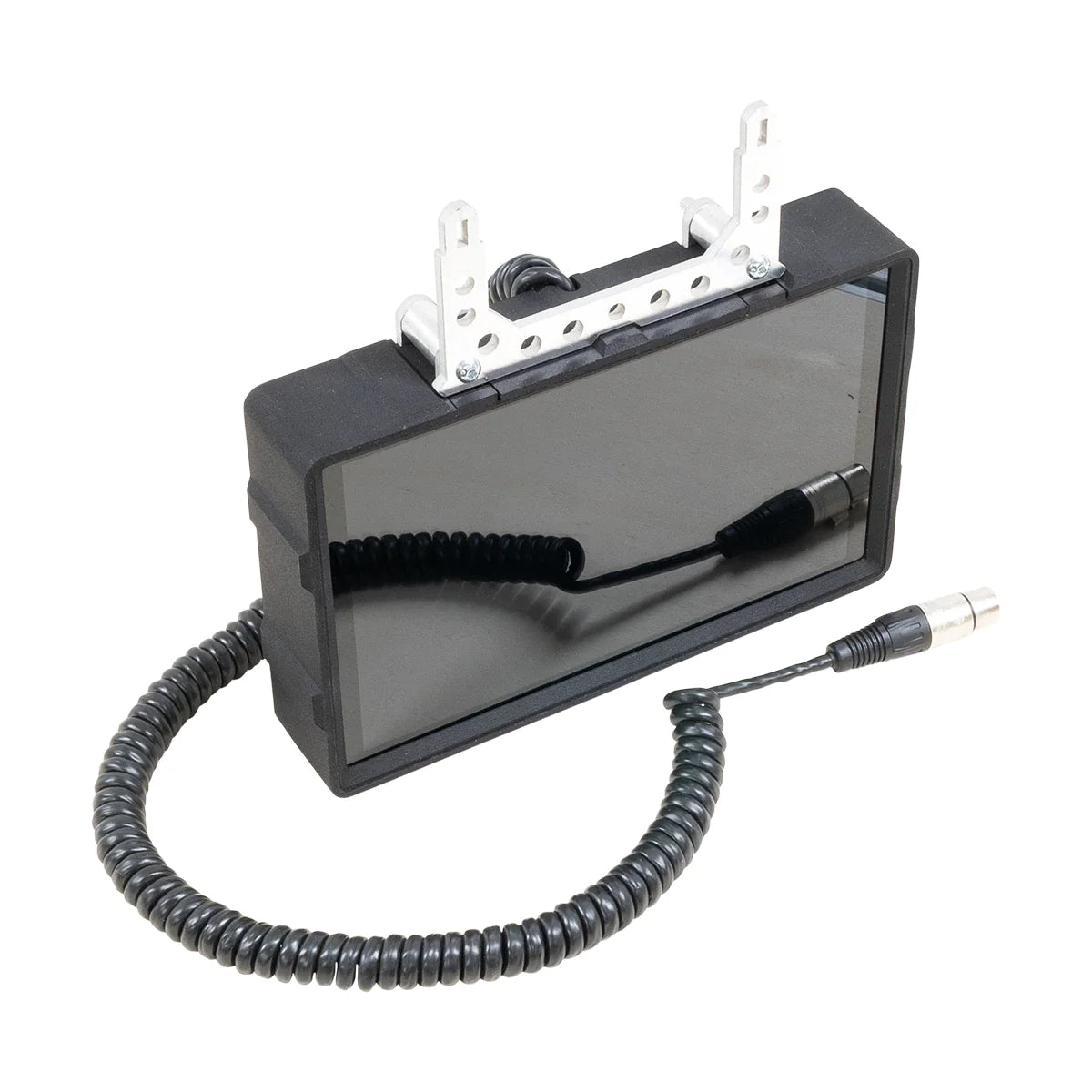

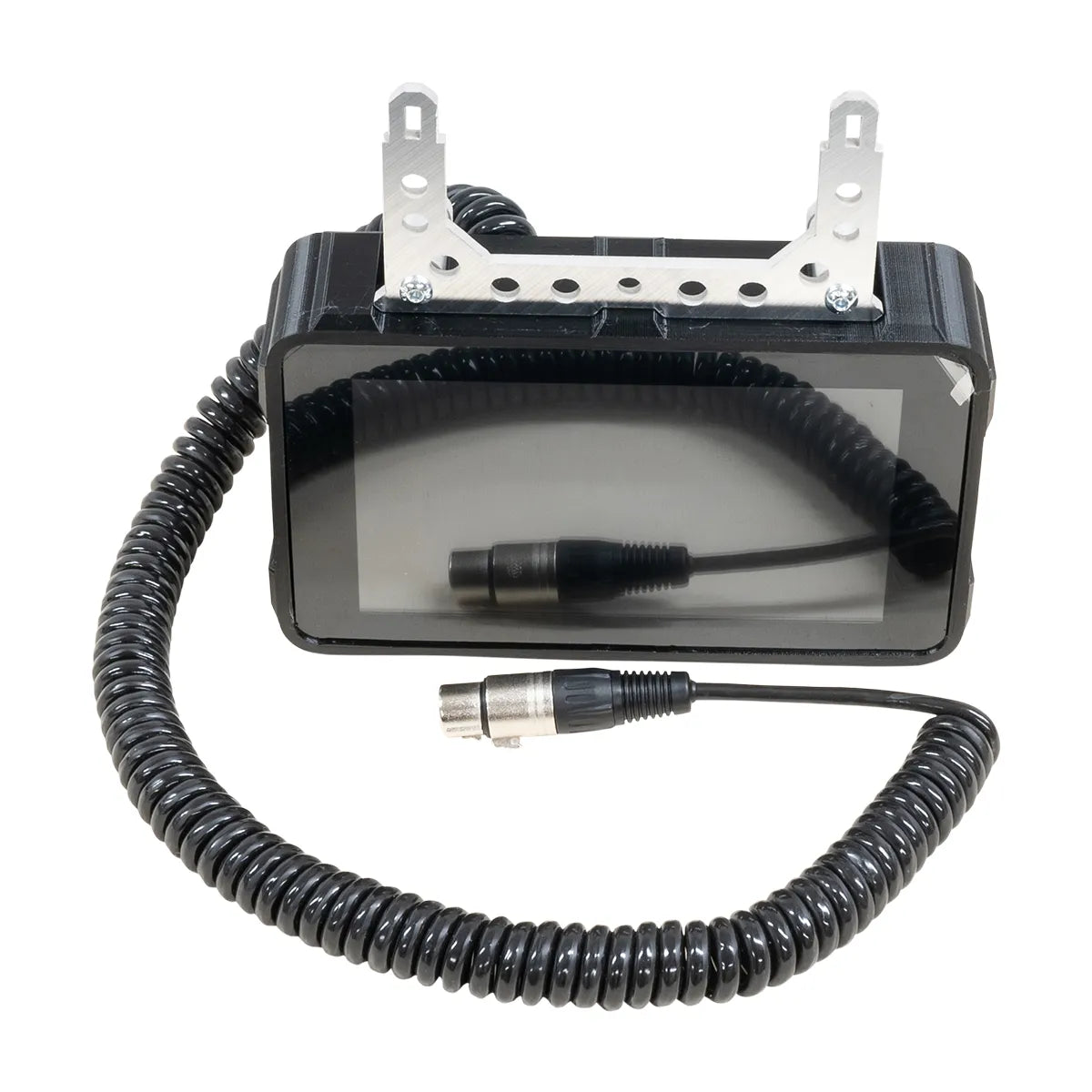

Yeti Tool Console XL

SKU: 21704

Upgrade your SmartBench experience with Console XL, the ultimate accessory for all SmartBench customers. This larger, sleeker console takes your productivity to the next level by providing an easier to use 10 inch screen.

Compatible with all SmartBench versions, installation is a breeze. Just plug in and get ready to conquer your tasks. Built to last with additional screen protection, Console XL is your trusty sidekick for all your SmartBench projects.


  • Larger interface for easier use
  • 2.5x larger 10.1 inch screen with a viewing angle of 178 degrees
  • App library ready - Larger interface in prep for much anticipated design apps
  • 2 USB ports on the side for easier access
  • Additional screen protection
  • Rugged case
  • Sleeker design
  • Compatible with all SmartBench models
Dimensions (L x W x H): 10.59" x 9.72" x 2.0" (269mm x 247mm x 51mm)
Weight: 4.4 lbs. (2kg)

Console Comparison Chart

  Console XL Console V1 Console V2
Screen Size 10.1" 7" 7"
Screen Resolution 1280 x 800 800 x 480 800 x 480
Touchscreen Yes Yes Yes
Processor Broadcom BCM2711B0 (Pi4) Broadcom BCM2837 Broadcom BCM2711B0 (Pi4)
CPU Speed 1.5 GHz 1.4 GHz 1.5 GHz
RAM (Memory) 4 Gb 1 Gb 4 GB
Storage 32 Gb 8 Gb 32 Gb
USB ports (Available) 2 1 2
Thermal management Passive heatsink Software throttling only Passive heatsink
Boot time 60s 66s 60s
10Mb file analysis time Full Load: 2:27 (147s)
Analyse Only: 1:13 (73s)
Full Load: 6:35 (395s)
Analyse Only: 3:10 (190s)
Full Load: 2:27 (147s)
Analyse Only: 1:13 (73s)
SD card slot access Yes No Yes
OS version 11 9 11
Preview segment capability 5000 - 8000 Lines
TBC (SW Version dependant)
2000 Lines 5000 - 8000 Lines
TBC (SW Version dependant)
Remote support capability No No No
Optimal Operating Range 0 - 50°C 0 - 30°C 0 - 50°C
Input voltage 24V DC 24V DC 24V DC
